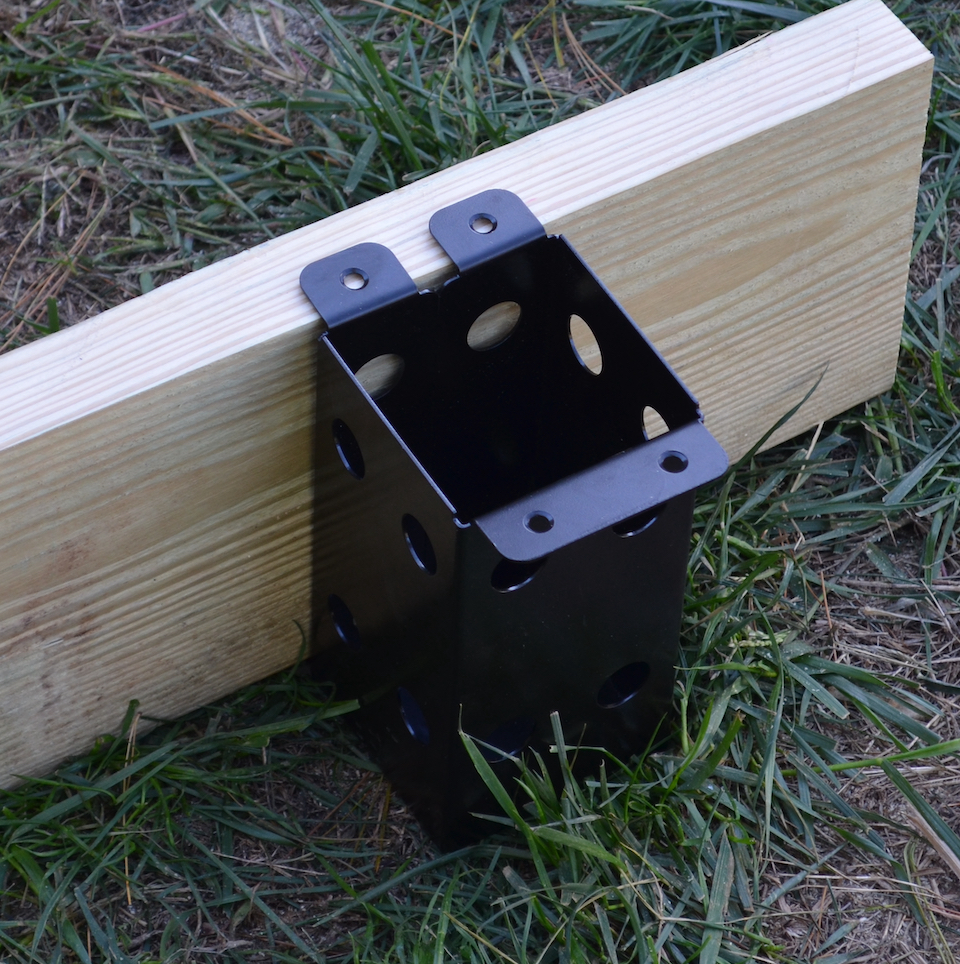

ez Post Pocket

Designed and tested with a minimum 2" x 8" wood substructure, the Post Pocket's innovative and patented design delivers the quickest, easiest, and most economical way to install a code-compliant 4" x 4" wood guard rail post for your railing systems.

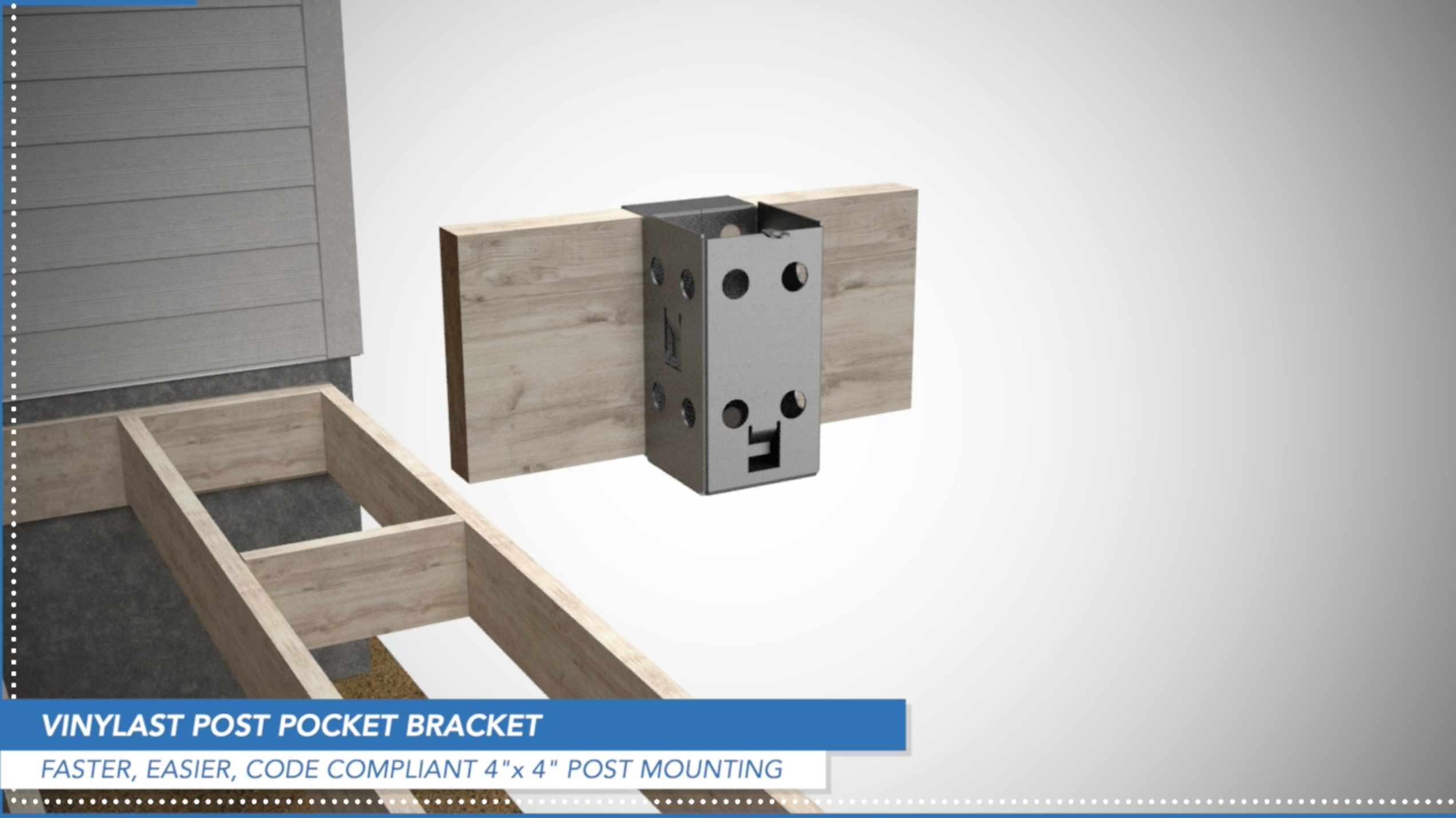

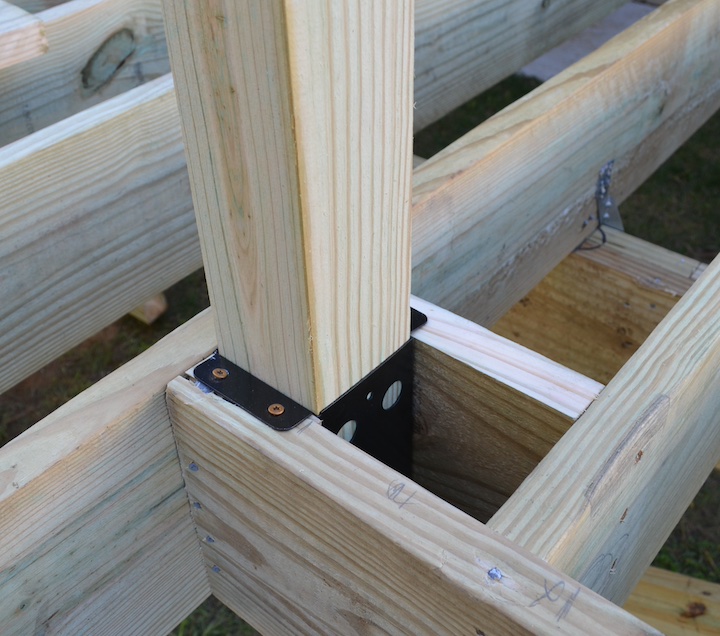

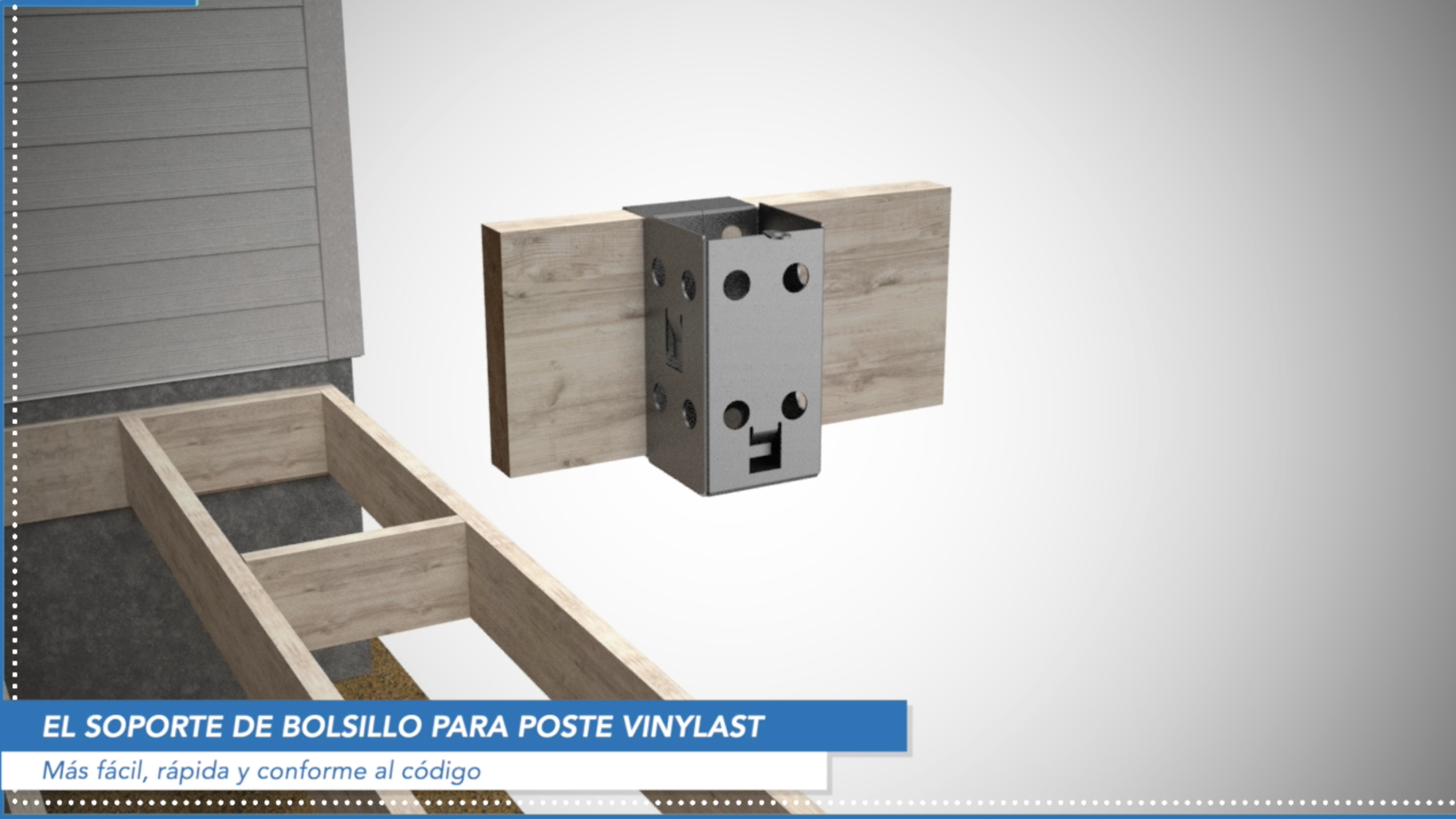

This bracket integrates a 2" x 8" support block that allows your wood post to securely, attach directly to the deck's substructure, tying together and reinforcing all the supporting wood joists for added strength while allowing the post to be perfectly plumbed at installation.

KEY FEATURES

• Quickly and easily installs to a minimum 2" x 8" wood substructure
• Wood post can be plumbed with provided shims
• Built-in pressure tabs ensure a tight post fit
• Weep hole provided for water drainage
• Protective corrosion resistance coating
• Strong and secure structural design
• Mounting hardware included
• Fully tested and code-compliant

INCLUDES

• ez Post Pocket Bracket
• U2 Fastener screws     |   Details sheet
• T5 screw tip drive
• Plumbing shims
• Hardware template
• Installation instructions

MATERIAL

14 gauge steel laser cut, die stamped, and welded for integrity and strength

FINISH

"Shore Coat" protected salt spray tested to 1000 hours

PATENT

• USA
• Canada
